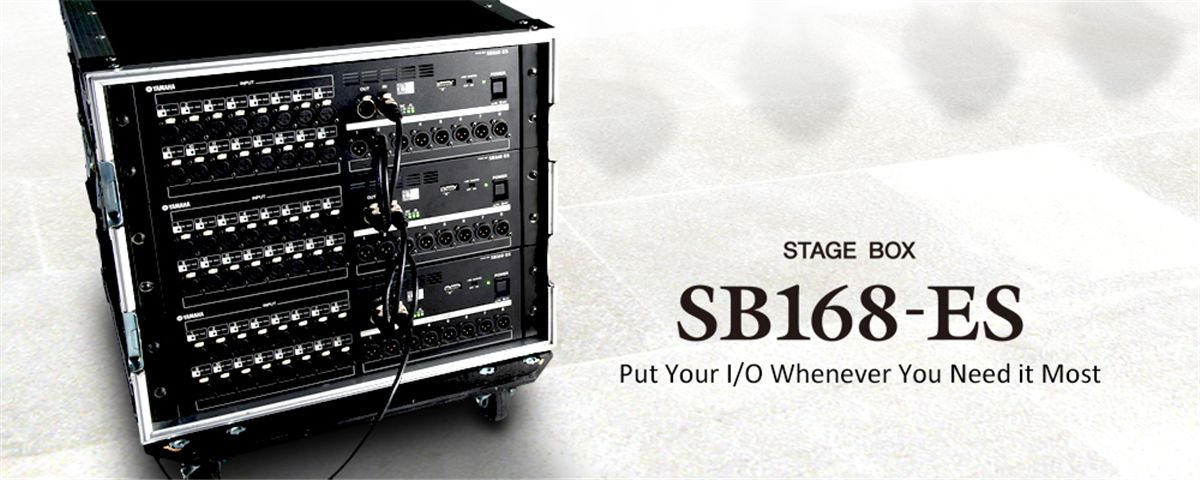

SB168-ES Stage Box

		SB168-ES
개요
I/O	마이크 입력	16 (Remote HA), with HPF
	가상 전원	+48V DC; ON/OFF: per channel
	AD 컨버터	24bit; 128 time over sampling
	라인 출력	8
	DA 컨버터	24bit; 128 time over sampling
	디지털 I/O	2x EtherSound
일반 사양
샘플링 레이트	내부	48kHz
샘플링 주파수 속도	외부	48kHz (-10%, +2.5%)
총 고조파 왜곡		Less than 0.05% (20Hz-20kHz)
주파수 응답		0, +0.5, -1.5dB 20Hz-20kHz
동적 범위		AD+DA: 108dB
전기 및 유도 잡음 수준	상응하는 입력 잡음	-128dBu
전기 및 유도 잡음 수준	잉여 입력 잡음	-80dBu
크로스 토크		-80dB
전원 요구 사항		AC100-240V 50/60Hz
전력 사용량		65W
면적	W	480mm; 18-7/8in
	H	132mm; 5-3/16in (3U), 142mm; 5-9/16in (inc. rubber feet)
	D	359.7mm; 14-3/16in
순 무게		8kg; 17.6lbs
전체 사양
액세서리		Owner's manual, AC power cord

Analog input characteristics

Input Terminals	GAIN	Actual Load Impedance	For Use With Nominal	Input Level		Connector
Input Terminals	GAIN	Actual Load Impedance	For Use With Nominal	Nominal	Max. before clip	Connector
INPUT 1-16	-62dB	3kΩ	50-600Ω Mic & 600Ω Line	-62dBu (0.616mV)	-42dBu (6.16mV)	XLR-3-31 type (Balanced)
INPUT 1-16	+10dB	3kΩ	50-600Ω Mic & 600Ω Line	+10dBu (2.45V)	+30dBu (24.5V)	XLR-3-31 type (Balanced)

Analog Output characteristics

Output Terminals	Actual Source Impedance	For Use With Nominal	Max. Output Level (Selectable)	Output Level		Connector
Output Terminals	Actual Source Impedance	For Use With Nominal	Max. Output Level (Selectable)	Nominal	Max. before clip	Connector
OUTPUT 1-8	75Ω	600Ω Lines	+24dB (default)	+4dBu (1.23V)	+24dBu (12.3V)	XLR-3-32 type (Balanced)
OUTPUT 1-8	75Ω	600Ω Lines	+18dB	-2dBu (616mV)	+18dBu (6.16V)	XLR-3-32 type (Balanced)

Digital I/O Characteristics

Terminal	Format	Data length	Level	Connector
IN	EtherSound	24bit	100BASE-TX	etherCON CAT5
OUT	EtherSound	24bit	100BASE-TX	etherCON CAT5

Control I/O Characteristics

Terminal	Format	Level	Connector
NETWORK	IEE802.3	10BASE-T / 100BASE-TX	RJ-45
