To use an AG series mixer with a computer, software called a "driver" is required.

For Windows operating systems, you must install a driver on your computer so that it will correctly recognize and exchange data with the AG series mixer. For Mac operating systems, standard drivers are already installed on the computer; you do not need to install a separate driver.

AG DSP Controller는 더 이상 Yamaha Steinberg USB Driver V2.1.3 for Windows 및 이후 버전을 지원하지 않습니다. 이 경우 AG Controller를 사용하여 주시기 바랍니다.

Connecting to a computer

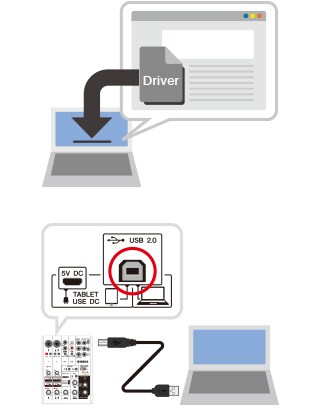

1. Download and install the "Yamaha Steinberg USB Driver", which is required for this mixer to be recognized by the computer.

2. After installing the driver, use a USB cable to connect the AG series mixer to a computer. Do not use a USB hub; connect the USB cable directly to the mixer and computer.

3. Turn on the power to the AG series mixer. If you connected and turned on the mixer before installing the driver, leave the mixer powered on and install the driver now.

Computer settings and console operations

After installing the driver, make the necessary settings on your computer.

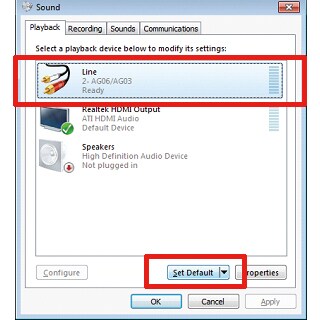

Click [Control Panel] -> [Sound], and then on the [Playback] tab, select [AG06/AG03] and click the [Set Default] button.

Computer settings (Mac)

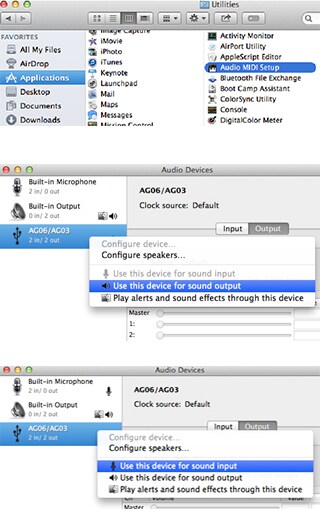

1. Select [Applications] -> [Utilities], and then double-click [Audio MIDI Setup].

2. Select [AG06/AG03] from the list on the left side of the [Audio Devices] window. If the [Audio Devices] window is not displayed, in the menu select [Window] -> [Show Audio Window].

3. Control-click [AG06/AG03] in the list, and select [Use this device for sound output].

4. In the same way, control-click [AG06/AG03] in the list, and select [Use this device for sound input]. After completing steps 3 and 4, mic and speaker icons will appear next to the AG series unit in the list.

5. Quit Audio MIDI Setup

6. Turn the [(icon)] level knob to adjust the input level (volume) from the computer. Adjust the balance with the other channels, while turning the two knobs in the [MONITOR] section to adjust the overall volume.

  • CUBASE AI

    AG series consoles come with an access code for downloading the "Cubase AI" DAW software. You can download this software with a computer connected to the Internet.

  • AG DSP Controller

    AG DSP Controller gives you additional control of 1-TOUCH DSP parameters such as COMP, EQ, HPF, reverb, and the AMP SIM.

  • Cubasis LE

    "Cubasis LE" DAW App for iPad is available at App Store. Connect AG series to your iPad to unlock the feature set of "Cubase LE". This installation guide covers the tasks required to unlock.

  • WaveLab Cast

    "Cubase AI 다운로드 액세스 코드"를 등록한 경우 WaveLab Cast의 활성화 코드가 "MySteinberg" 소프트웨어 페이지에 배포됩니다.
